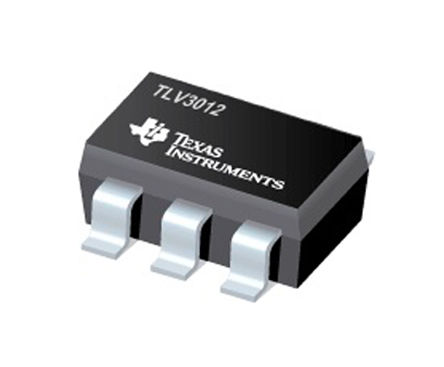

Image is for your reference only,please check specifications for details
- TLV3012AIDCKT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10700703
-
Category:Comparator, Analog Comparator IC
-
Package:SC-70-6
-
Datasheet:Datasheet 3D Model
-
Description:Analog Comparator, Single, Nanopower, 1, 6µs, 1.8V to 5.5V, SC-70, 6Pins
-
Stock Locations:
-
Availability:6 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.2
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV3012AIDCKT is a nano-power push-pull Comparator with voltage reference. It features an uncommitted on-chip voltage reference. It has 5µA maximum quiescent current, input common-mode range 200mV beyond the supply rails and single-supply operation from 1.8 to 5.5V. The integrated 1.242V series voltage reference offers low 100ppm/°C maximum drift is stable with up to 10nF capacitive load and can provide up to 0.5mA typical of output current. It is specified for the temperature range.
- 5µA Maximum low quiescent current
- Input common-mode range - 200mV Beyond rails
- 1% Voltage reference initial accuracy
- Push-pull output
- Fast response time - 6µs Propagation delay with 100mV overdrive
- Green product and no Sb/Br
TLV3012AIDCKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-70-6 |
| Supply Voltage (DC) | 1.80V (min) |
| Output Current | 500 µA |
| Supply Current | 2.80 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Common Mode Rejection Ratio | 74 dB |
| Quiescent Current | 5.00 µA |
| Input Offset Voltage | 12 mV |
| Input Bias Current | 0.01 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.8V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HK STC License | NLR |
