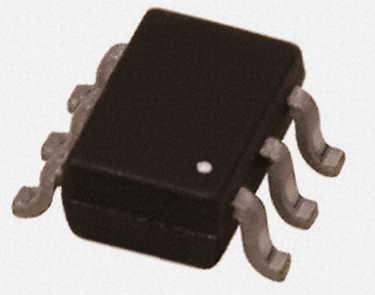

Image is for your reference only,please check specifications for details

NDC7002N - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7777036
Category:
MOSFET, MOSFET Transistor
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR NDC7002N Dual MOSFET, Dual N Channel, 510mA, 50V, 2Ω, 10V, 1.9V
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.31

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NDC7002N is a dual N-channel enhancement-mode FET produced using high cell density and DMOS technology. This very high density process has been designed to minimize ON-state resistance, provide rugged and reliable performance and fast switching. This device is particularly suited for low voltage applications requiring a low current high side switch.
High saturation current
High density cell design for low RDS (ON)
Design using copper lead-frame for superior thermal and electrical capabilities

Show

NDC7002N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Voltage Rating (DC)	50.0 V
Current Rating	350 mA
Power Rating	0.96 W
Number of Channels	2 Channel
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	2 Ω
Polarity	N-Channel, Dual N-Channel
Power Dissipation	700 mW
Threshold Voltage	1.9 V
Drain to Source Voltage (Vds)	50 V
Breakdown Voltage (Drain to Source)	50 V
Continuous Drain Current (Ids)	510 mA
Rise Time	6 ns
Input Capacitance (Ciss)	20pF @25V(Vds)
Input Power (Max)	700 mW
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	0.96 W
	Show
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
