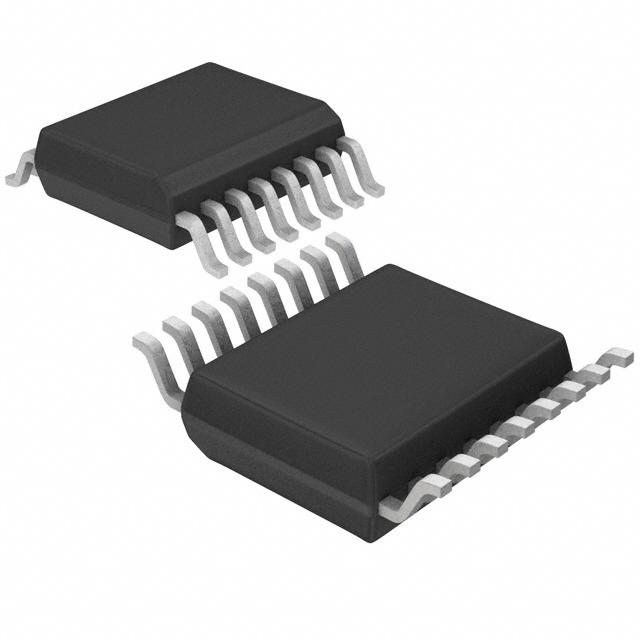

Image is for your reference only,please check specifications for details
- SN74CB3Q3257DBQR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3089280
-
Category:Logic Controller, Logic IC
-
Package:SSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:4Bit One-of-2 FET Multiplexer/Demultiplexer 2.5V/3.3V Low-Voltage, High-Bandwidth Bus Switch 16-SSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:688 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.49
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74CB3Q3257 device is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron).
SN74CB3Q3257DBQR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SSOP-16 |
| Supply Voltage (DC) | 2.30V (min) |
| Contacts Type | SPDT |
| Number of Channels | 4 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 200 ps |
| Polarity | Non-Inverting |
| Voltage Nodes | 2.50 V, 3.30 V |
| Quiescent Current | 1.5 mA |
| Bandwidth | 500 MHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.3 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Weight | 0.0011920408272 kg |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
