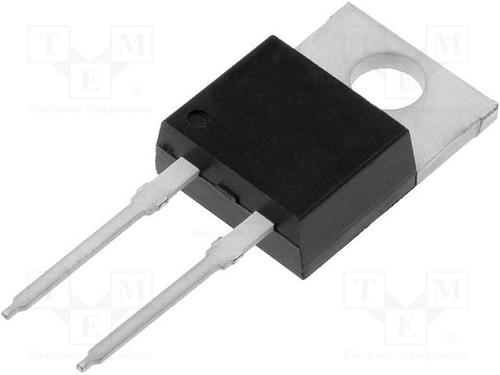

Image is for your reference only,please check specifications for details

MBR2545CT - Taiwan Semiconductor
Manufacturer:
Taiwan Semiconductor
ManyChip's Part#:
MC16700359
Category:
Schottky Diode
Package:
TO-220
Datasheet:
Datasheet 3D Model
Description:
TAIWAN SEMICONDUCTOR MBR2545CT Small Signal Schottky Diode, Dual Common Cathode, 45V, 30A, 820mV, 200A, 150℃
Stock Locations:
Availability:
1,125 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBR2545CT is a Rectifier Diode with moulded plastic case, metal silicon junction, majority carrier conduction and lead-free pure tin-plated terminals. The rectifier diode features solderable terminals as per MIL-STD-750, method 2026 standard, low power loss and high efficiency. Polarity marked on the body.
High current capability
Low forward voltage drop
High surge capability
31V Maximum RMS voltage
45V Maximum DC blocking voltage
600pF Typical junction capacitance

Show

MBR2545CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220
Load Current	25 A
Number of Positions	3 Position
Forward Current	30 A
Max Forward Surge Current (Ifsm)	200 A
Maximum Forward Voltage (Max)	820 mV
Operating Temperature (Max)	150 ℃
	Show
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
