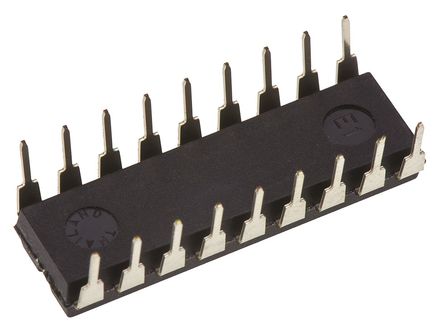

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ULN2803AN is a high-voltage/high-current Darlington Transistor Array. The device consists of (Single Output) eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500mA. The Darlington pairs may be connected in parallel for higher current capability. ULN2803AN will typically be used to drive a high voltage and/or current peripheral from an MCU or logic device that cannot tolerate these conditions.
Output Clamp Diodes
Inputs Compatible With Various Types of Logic

Show

ULN2803AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Voltage Rating (DC)	50.0 V
Current Rating	500 mA
Number of Positions	18 Position
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	50 V
Drivers Per Package	8
Continuous Collector Current	0.5A
Input Voltage (Max)	5 V
Output Voltage (Max)	50 V
Output Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	22.48 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
