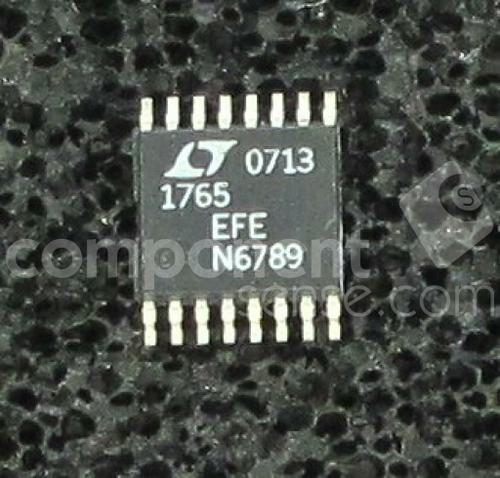

- LT1765EFE - Linear Technology
-
Manufacturer:Linear Technology
-
ManyChip's Part#:MC171061575
-
Category:DC to DC Converter
-
Package:TSSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 3V to 25V Step Down Single-Out 1.2V to 20V 6A 16Pin TSSOP EP
-
Stock Locations:
-
Availability:254 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 28.48
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The LT® 1765 is a 1.25MHz monolithic buck switching regulator. A high efficiency 3A, 0.09Ω switch is included on the die together with all the control circuitry required to construct a high frequency, current mode switching regulator. Current mode control provides fast transient response and excellent loop stability.
- FEATURES
- ■ 3A Switch in a Thermally Enhanced 16-Lead TSSOP or 8-Lead SO Package
- ■ Constant 1.25MHz Switching Frequency
- ■ Wide Operating Voltage Range: 3V to 25V
- ■ High Efficiency 0.09ΩSwitch
- ■ 1.2V Feedback Reference Voltage
- ■ Uses Low Profile Surface Mount Components
- ■ Low Shutdown Current: 15µA
- ■ Synchronizable to 2MHz
- ■ Current Mode Loop Control
- ■ Constant Maximum Switch Current Rating at All Duty Cycles
LT1765EFE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | TSSOP-16 |
| Supply Voltage (DC) | 25.0V (max) |
| Number of Outputs | 1 Output |
| Output Voltage | 1.2V ~ 20V |
| Output Current | 3 A |
| Switching Frequency | 1.25 MHz |
| Topology | Buck |
| Input Voltage | 3 V |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
