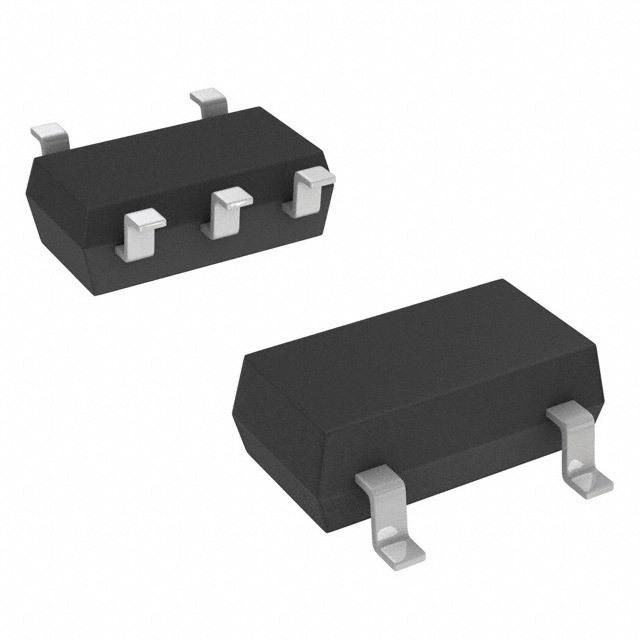

Image is for your reference only,please check specifications for details

TSV521ICT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC38985303
Category:
Operational Amplifier, OP Amp IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifiers - Op Amps 1.15MHz at 5V 45uA 2.7 to 5.5V 100pF
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.83

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSV52x and TSV52xA series of operational amplifiers offer low voltage operation and rail-to-rail input and output. The TSV521 device is the single version, the TSV522 device the dual version, and the TSV524 device the quad version, with pinouts compatible with industry standards.
The TSV52x and TSV52xA series offer an outstanding speed/power consumption ratio, 1.15 MHz gain bandwidth product while consuming only 45 μA at 5 V. The devices are housed in the smallest industrial packages.
These features make the TSV52x, TSV52xA family ideal for sensor interfaces, battery supplied and portable applications. The wide temperature range and high ESD tolerance facilitate their use in harsh automotive applications.
**Key Features**
Gain bandwidth product: 1.15 MHz typ. at 5 V
Low power consumption: 45 μA typ. at 5 V
Rail-to-rail input and output
Low input bias current: 1 pA typ.
Supply voltage: 2.7 to 5.5 V
Low offset voltage: 800 μV max.
Unity gain stable on 100 pF capacitor
Automotive grade
