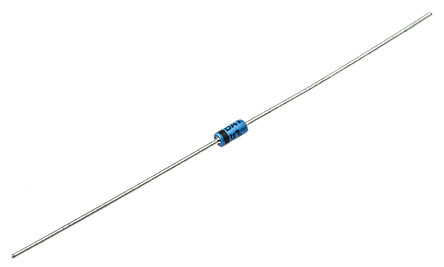

BAT41 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2551939
Category:
Schottky Diode
Package:
DO-35
Datasheet:
Datasheet 3D Model
Description:
BAT41 Series 200mA 1V Small Signal Schottky Diode Through Hole - DO-35
Stock Locations:
Availability:
292 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT41 is a general purpose metal to silicon Small Signal Schottky Diode featuring extremely fast switching, low forward and reverse recovery times. This diode is specially suited for switching mode with low IR losses. This device has integrated protection against excessive voltage such as electrostatic discharges.
Very low conduction losses
Negligible switching losses
Surface mount device
Low capacitance diode
150°C Operating junction temperature (maximum)

Show

BAT41 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	100 V
Current Rating	100 mA
Capacitance	2.00 pF
Output Current	≤100 mA
Load Current	0.1 A
Number of Positions	2 Position
Forward Voltage	450mV @1mA
Polarity	Standard
Common Mode Rejection Ratio	105 dB
Bandwidth	700 kHz
Thermal Resistance	300℃/W (RθJA)
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	750 mA
Maximum Forward Voltage (Max)	450 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	100 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	4.5 mm
Size-Width	2 mm
Size-Height	2 mm
Operating Temperature	65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
