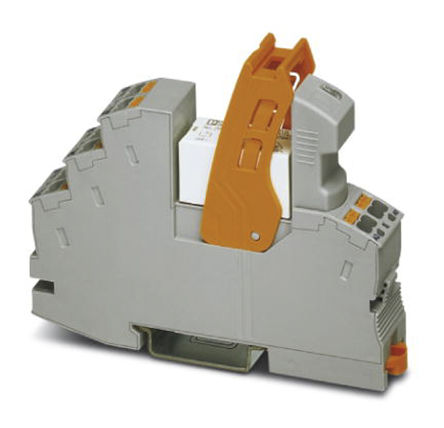

Image is for your reference only,please check specifications for details
- 2906223 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC97623467
-
Category:Power Relay
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 12VDC 363.63Ω 8A DPDT(16x75x93)mm DIN Rail Relay Module
-
Stock Locations:
-
Availability:68 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.98
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Electromechanical Relay 12VDC 363.63Ohm 25A DPDT(16x75x93)mm DIN Rail Relay Module
2906223 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 8 A |
| Input Current | 33 mA |
| Contact Current Rating | 8 A |
| Coil Voltage | 12 VDC |
| Coil Current | 33 mA |
| Coil Resistance | 363.63 Ω |
| Coil Voltage (DC) | 12 V |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 75 mm |
| Size-Width | 16 mm |
| Size-Height | 93 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
