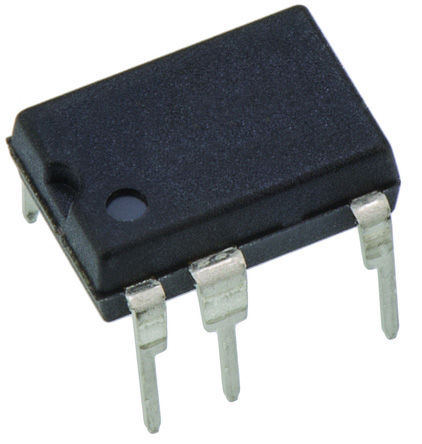

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DCP012415DBP is a family of 1W isolated unregulated DC/DC Converter Module. Requiring a minimum of external components and including on-chip device protection, the DCP01B series of device provides extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the DCP01B series of device suitable for a wide range of applications and is an easy-to-use solution in applications requiring signal path isolation.
Device-to-device synchronization
EN55022 Class B EMC performance
1kV Operational isolation
This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation.

Show

DCP012415DBP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	800 kHz
Power Rating	1 W
Number of Outputs	2 Output
Input Voltage (DC)	21.6V ~ 26.4V
Output Voltage	15 V
Output Current	33 mA
Number of Positions	14 Position
Quiescent Current	17.0 mA
Number of Regulated Outputs	2 Output
Output Power	1 W
Isolation Voltage	1 kV
Switching Frequency	800 kHz
Input Voltage (Max)	26.4 V
Input Voltage (Min)	21.6 V
Output Current (Max)	33mA, 33mA
Input Power (Max)	0.97 W
Input Power (Max)	510 mW
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	21.6V ~ 26.4V
	Show
Size-Length	19.18 mm
Size-Width	6.61 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
