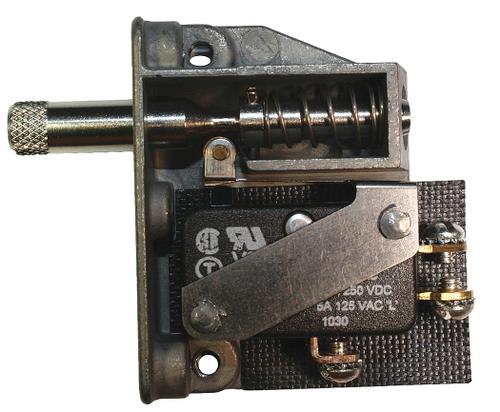

Image is for your reference only,please check specifications for details

13AC1 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC49103947
Category:
Switch
Datasheet:
Datasheet 3D Model
Description:
Switch Safety Interlock N.O./N.C. SPDT Rod 15A 250VAC 250VDC 248.57VA Screw Screw Mount
Stock Locations:
Availability:
172 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 105.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 13AC1 is a single-pole double-throw (SPDT) Door Switch with rod actuator and screw termination. The MICRO SWITCH™ AC series door switch comes with stainless steel bracket, rod and housing, silver-plated contact. It is used for simple or precision ON/OFF application needs. It enables circuit testing with POWER ON by manually pulling a rod actuator to the maintained-ON position. Closing the door resets the switch. Automatically cuts power when service door or drawer is opened.
Reliable performance
Circuit flexibility
Mounting ease
-54 to 149°C Operating temperature range
Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury.

Show

13AC1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis, Screw Terminals
Voltage Rating (DC)	125 V
Actuator Type	Rod
Voltage Rating (AC)	125 V
Current Rating	15A (AC), 500mA (DC)
Contacts Type	SPDT
Number of Positions	2 Position
Contact Current Rating	15.0 A
Current Rating (Max)	15A @250VAC
Input Power (Max)	248.57 VA
Operating Temperature (Max)	149 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	250 VAC
Voltage Rating (DC Max)	250 V
Voltage Rating (AC Max)	250 V
	Show
Size-Height	45.97 mm
Operating Temperature	-55℃ ~ 149℃
Housing Material	Stainless Steel
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536509055
ECCN Code	EAR99
