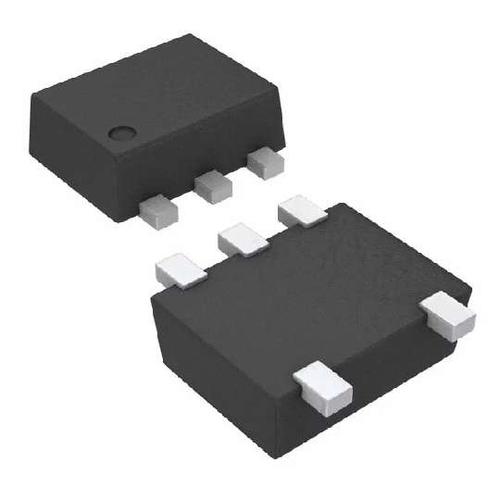

Image is for your reference only,please check specifications for details

TPD2E001DRLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC779323
Category:
TVS Diode
Package:
SOT-553
Datasheet:
Datasheet 3D Model
Description:
Low-Capacitance 2Channel +/-15kV ESD Protection Array for High-Speed Data Interfaces 5-SOT -40℃ to 85℃
Stock Locations:
Availability:
4,067 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.7

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD2E001DRLR is a 2-channel low-capacitance Transient Voltage Suppressor (TVS) based electrostatic discharge protection device (ESD). The TPD2E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 level 4 international standard. The TPD2E001 is an unidirectional electrostatic discharge (ESD) protection device with low capacitance. The device is constructed with a central ESD clamp that features two hiding diodes per line to reduce the capacitive loading. This central ESD clamp is also connected to VCC to provide protection for the VCC line. Each IO line is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 level 4 international standard. The TPD2E001"s low loading capacitance makes it ideal for protection high-speed signal terminals.
1.5pF IO Capacitance
1nA Maximum low leakage current
1nA Low supply current
-40 to 85°C Operating temperature range

Show

TPD2E001DRLR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-553
Operating Voltage	5.5 V
Capacitance	1.5 pF
Number of Outputs	2 Output
Breakdown Voltage	11 V
Number of Channels	2 Channel
Number of Positions	5 Position
Clamping Voltage	105.5 V
Min Breakdown Voltage	11 V
Input Voltage (Max)	15000 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.9.5.5 V
Supply Voltage (Max)	5.5 V
	Show
Size-Length	1.6 mm
Size-Width	1.2 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
