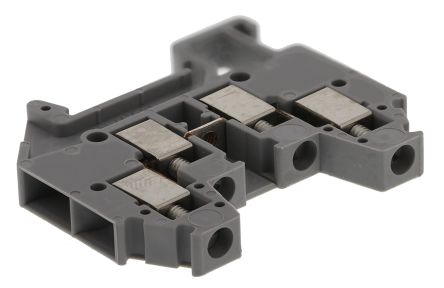

Image is for your reference only,please check specifications for details
- 3001679 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC49032470
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Conn; Term Blk; 2; 4; 30-14; 400; 16A; 4kV; M 2; 0.22Nm (Min.); PA; Screw
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Fuse Terminal, Black Color, PA Insulation Material, Glass Fuse Type
- * PA insulating material
- * Screw connection
- Modular terminal block with screw connection.
3001679 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail, Screw |
| Pin Pitch | 4.2 mm |
| Number of Contacts | 4 Contact |
| Wire Gauge | 14AWG ~ 30AWG |
| Current Rating | 16 A |
| Number of Rows | 4 Row |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 4 Position |
| Current Rating (Max) | 16 A |
| Voltage Rating (Max) | 400 V |
| Voltage Rating | 400 V |
| Operating Voltage (Max) | 400 V |
| Show | |
| Size-Length | 33.5 mm |
| Size-Width | 4.2 mm |
| Housing Color | Gray |
| Color | Gray |
| Insulation Material | Nylon |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
