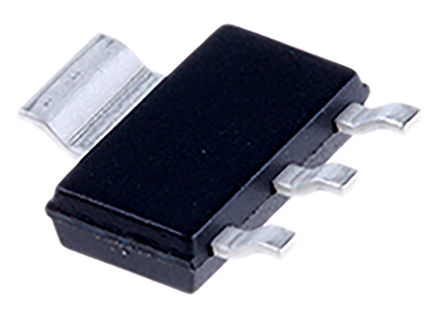

Image is for your reference only,please check specifications for details
- BSP149 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC55315300
-
Category:MOSFET, MOSFET Transistor
-
Package:SOT-223
-
Datasheet:Datasheet 3D Model
-
Description:INFINEON BSP149 MOSFET Transistor, N Channel, 480mA, 200V, 3.5Ω, 10V, -1.4V
-
Stock Locations:
-
Availability:303 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.63
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- • N-channel
- • Depletion mode
- • dv /dt rated
- • Available with VGS(th) indicator on reel
- • Pb-free lead plating; RoHS compliant
BSP149 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-223 |
| Number of Positions | 4 Position |
| Drain to Source Resistance (on) (Rds) | 3.5 Ω |
| Polarity | N-Channel |
| Power Dissipation | 1.8 W |
| Drain to Source Voltage (Vds) | 200 V |
| Continuous Drain Current (Ids) | 480 mA |
| Rise Time | 3.4 ns |
| Input Capacitance (Ciss) | 326pF @25V(Vds) |
| Fall Time | 3.4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 1.8 W |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
