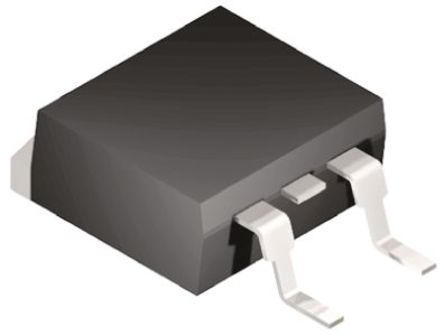

Image is for your reference only,please check specifications for details

MC7805BD2TR4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3249685
Category:
Voltage Regulator
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, Positive, 5V, 1A Vout: 5V; TJ = -40℃ to +125℃
Stock Locations:
Availability:
805 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC7805BD2TR4G is a 1A positive voltage regulator in 3 pin TO-263 package. This voltage regulator is monolithic integrated circuit designed as fixed voltage regulator for a wide variety of applications including local, on-card regulation. It employs internal current limiting, thermal shutdown and safe-area compensation. With adequate heatsinking it can deliver output current in excess of 1A.
Input voltage of 35VDC
Internally limited power dissipation
Nominal output voltage of 5V
Operating temperature range from -40°C to 125°C
No external components required
Internal thermal overload protection
Internal short circuit current limiting
Output voltage offered in 1.5%, 2% and 4% tolerance

Show

MC7805BD2TR4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Operating Voltage	8V ~ 20V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	40.0V (max)
Output Voltage	5 V
Output Current	1 A
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	3.2 mA
voltage rating	2V @1A
Input Voltage (Max)	35 V
Output Current (Max)	2.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	≤35 V
	Show
Size-Length	10.24 mm
Size-Width	9.35 mm
Size-Height	30.02 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
