Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

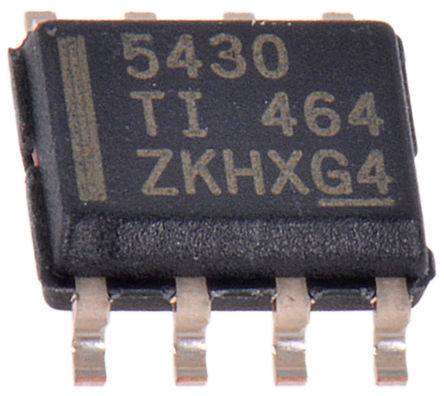

Case/Package | SOIC-8 |
Frequency | 500 kHz |
Number of Outputs | 1 Output |
Output Voltage | 1.22V ~ 31V |
Output Current | 3 A |
Number of Channels | 1 Channel |
Number of Positions | 8 Position |
Quiescent Current | 3.00 mA |
Number of Regulated Outputs | 1 Output |
Switching Frequency | 500 kHz |
Thermal Shutdown | Yes |
Input Voltage (Max) | 36 V |
Input Voltage (Min) | 5.5 V |
Output Voltage (Max) | 31 V |
Output Voltage (Min) | 1.22 V |
Output Current (Max) | 3 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Supply Voltage | 5.5 V |
Input Voltage | 5.5V ~ 36V |
Show | |
Size-Length | 5 mm |
Size-Width | 4 mm |
Size-Height | 1.55 mm |
Operating Temperature | -40℃ ~ 125℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
ECCN Code | EAR99 |
