Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

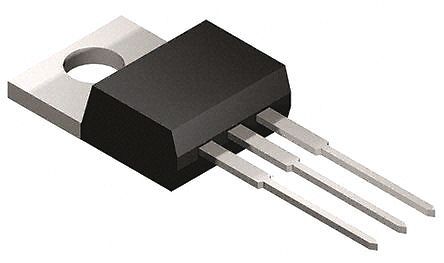

Case/Package | TO-220-3 |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 0.16 Ω |
Polarity | N-Channel |
Power Dissipation | 60 W |
Threshold Voltage | 3 V |
Drain to Source Voltage (Vds) | 120 V |
Continuous Drain Current (Ids) | 7.00 A |
Rise Time | 25 ns |
Input Capacitance (Ciss) | 460pF @25V(Vds) |
Fall Time | 8 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 60W (Tc) |
Show | |
Size-Length | 10.4 mm |
Size-Width | 4.6 mm |
Size-Height | 15.75 mm |
Operating Temperature | -55℃ ~ 175℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Rail, Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
