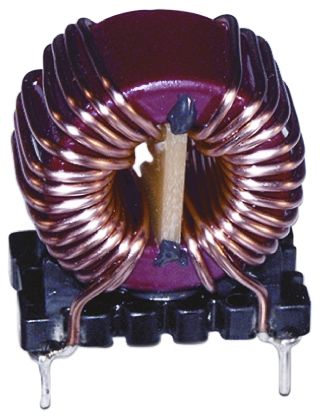

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 744821039 is a 300mA common mode Power Line Choke with broadband screening. The WE-CMB series choke has high interference compression asymmetric interference rate.
Very compact design
Highest possible current with small sizes
-40 to 125°C Operating temperature range

Show

744821039 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Voltage Rating (AC)	250 V
Current Rating	300 mA
Capacitance Tolerance	±30 %
Inductance	39 mH
Resistance	3.00 Ω
Current Rating (Max)	300 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	3 Ω
	Show
Size-Length	15 mm
Size-Height	18 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
