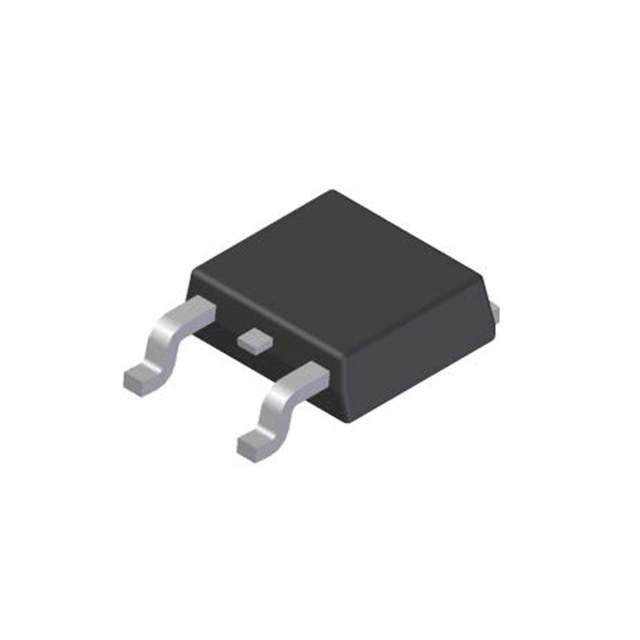

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 100V 3A (Ta) 2.15W (Ta) Surface Mount TO-252-3
ZXMP10A16KTC Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Polarity | P-CH |
| Power Dissipation | 9.76 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 4.6A |
| Rise Time | 5.2 ns |
| Input Capacitance (Ciss) | 717pF @50V(Vds) |
| Input Power (Max) | 2.15 W |
| Fall Time | 12.1 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 9760 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
