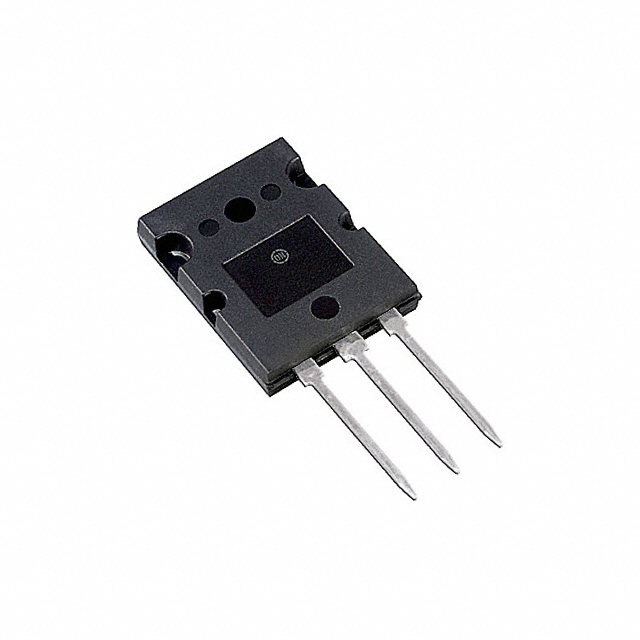

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

16 A COMPLEMENTARY SILICON POWER TRANSISTORS 250 V, 200 W
The MJL21195 and MJL21196 utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications.
•Total Harmonic Distortion Characterized
•High DC Current Gain −hFE= 25 Min @ IC= 8 Adc
•Excellent Gain Linearity
•High SOA: 2.50 A, 80 V, 1 Second
•Epoxy Meets UL 94, V−0 @ 0.125 in
•ESD Ratings: Human Body Model, 3B 8000 V
Machine Model, C 400 V
•Pb−Free Packages are Available

Show

MJL21195 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-264-3
Voltage Rating (DC)	-250 V
Current Rating	-16.0 A
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	250 V
Continuous Collector Current	16A
hFE Min	25 @8A, 5V
Input Power (Max)	200 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
