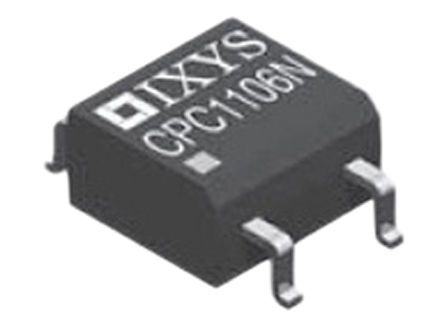

Image is for your reference only,please check specifications for details
- CPC1106N - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC41070500
-
Category:Solid State Relay
-
Package:SOP-4
-
Datasheet:Datasheet 3D Model
-
Description:Relay SSR 50mA 1.4V DC-IN 0.075A 60V 4Pin SOP Tube
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NC (1 Form B) 4-SOP (0.150", 3.81mm)
CPC1106N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Capacitance | 10 pF |
| Output Voltage | 0V ~ 60V |
| Load Current | 75 mA |
| Input Current | 50 mA |
| Power Dissipation | 400 mW |
| Input Voltage (Max) | 1.4 V |
| Input Voltage (Min) | 0.9 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 0.075 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 400 mW |
| Input Voltage | 1.2 VDC |
| Show | |
| Size-Length | 4.09 mm |
| Size-Width | 3.81 mm |
| Size-Height | 2.12 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
