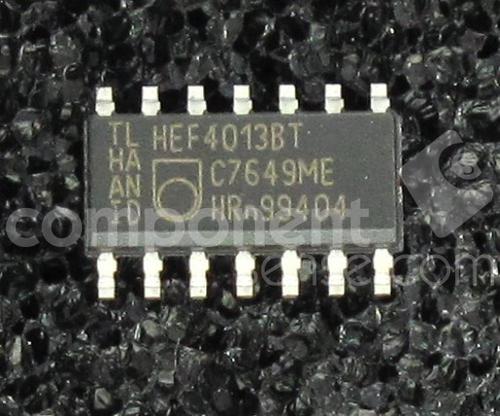

Image is for your reference only,please check specifications for details

HEF4013BT - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC55332892
Category:
Logic Control, Logic Gate IC
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
NXP HEF4013BT Flip-Flop, Complementary, Positive Edge, HEF4013, D, 30ns, 40MHz, 2.4mA, SOIC
Stock Locations:
Availability:
4,099 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4013BT is a Dual D-type Flip-flop features independent set-direct input (SD), clear-direct input (CD), clock input (CP) and outputs (Q, Q). Data is accepted when CP is LOW and is transferred to the output on the positive-going edge of the clock. The active high asynchronous CD and SD inputs are independent and override the D or CP inputs. The outputs are buffered for best system performance. The clock input"s Schmitt-trigger action makes the circuit highly tolerant of slower clock rise and fall times. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS or another input.
Tolerant of slow clock rise and fall times
Fully static operation
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B

Show

HEF4013BT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC
Frequency	40 MHz
Supply Voltage (DC)	4.50V (min)
Output Current	2.4 mA
Number of Positions	14 Position
Number of Gates	2 Gate
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	15.5 V
Supply Voltage (Min)	4.5 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
