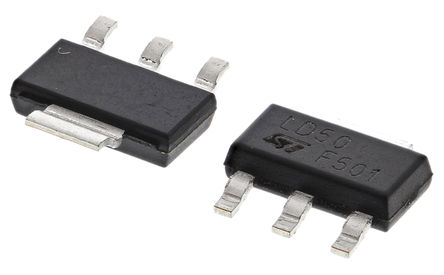

Image is for your reference only,please check specifications for details
- LD1117S50TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC308085
-
Category:Voltage Regulator
-
Package:TO-261-4
-
Datasheet:Datasheet 3D Model
-
Description:Voltage regulator; LDO, linear, fixed; 5V; 0.95A; SOT223; SMD; ±2%
-
Stock Locations:
-
Availability:2,281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.27
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LD1117S50TR is a low drop positive Voltage Regulator concerning fixed versions. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ±1% at 25°C. The adjustable LD1117 is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of drop and tolerance.
- Adjustable and fixed
- Low dropout voltage (1V typical)
- 2.85V device performances are suitable for SCSI-2 active termination
- Adjustable version availability (VREF= 1.25V)
- Internal current and thermal limit
- Available in ±1% (at 25°C) and 2% in full temperature range
- 75dB Supply voltage rejection
LD1117S50TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-261-4 |
| Supply Voltage (DC) | 15.0V (max) |
| Operating Voltage | 0V ~ 15V |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 15.0V (max) |
| Output Voltage | 5 V |
| Output Current | 800 mA |
| Supply Current | 10 mA |
| Number of Positions | 3 Position |
| Power Dissipation | 12 W |
| Quiescent Current | 10 mA |
| voltage rating | 1.1 V |
| Input Bias Current | 5 mA |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 6.5 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 1.3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 12000 mW |
| Accuracy | 1 % |
| Input Voltage | 15 V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 1.8 mm |
| Weight | 0.004535924 kg |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
| HK STC License | NLR |
