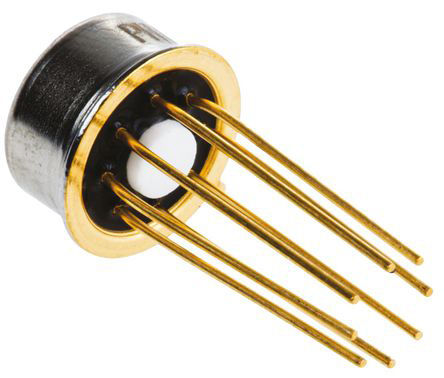

Image is for your reference only,please check specifications for details

AD549KHZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC481900
Category:
Operational Amplifier, OP Amp IC
Package:
TO-99-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD549KHZ Operational Amplifier, Single, 1 Amplifier, 1MHz, 3V/µs, ± 5V to ± 18V, TO-99, 8Pins
Stock Locations:
Availability:
751 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 56.17

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Ultralow input bias current * 60 fA maximum (AD549L) * 100 fA maximum (AD549K) * 250 fA maximum (AD549J) * Input bias current guaranteed over the common-mode * voltage range * Low offset voltage * 0.50 mV maximum (AD549K) * 1.00 mV maximum (AD549J) * Low offset drift * 15 μV/°C maximum (AD549K) * 20 μV/°C maximum (AD549J) * Low power * 700 μA maximum supply current * Low input voltage noise * 4 μV (typ) p-p over 0.1 Hz to 10 Hz * MIL-STD-883B parts available

Show

AD549KHZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	TO-99-8
Supply Current	600 µA
Number of Circuits	1 Circuit
Number of Positions	8 Position
Power Dissipation	500 mW
Common Mode Rejection Ratio	90 dB
Input Capacitance	800 fF
Bandwidth	1 MHz
Slew Rate	3.00 V/μs
Gain Bandwidth Product	1 MHz
Input Impedance	999 TΩ
Input Offset Voltage	150 µV
Input Bias Current	0.075 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	90 dB
Power Dissipation (Max)	500 mW
Minimum CMRR Range	90 dB
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	4.7 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
