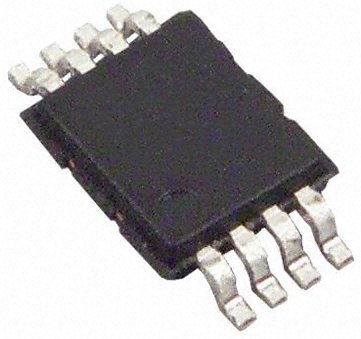

ADG819BRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC202004
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADG819BRMZ Analog Switch, Single Channel, SPDT, 1Channels, 0.5Ω, 1.8V to 5.5V, MSOP, 8Pins
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.63

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The ADG819 is a monolithic, CMOS, single-pole, double-throw (SPDT) switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
FEATURES
Low on resistance: 0.8 Ω maximum at 125°C
0.25 Ω maximum on resistance flatness
1.8 V to 5.5 V single supply
200 mA current carrying capability
Automotive temperature range: –40°C to +125°C
Rail-to-rail operation
6-lead SOT-23, 8-lead MSOP, and 6-ball WLCSP packages
Fast switching times
Typical power consumption (<0.01 µW)
TTL-/CMOS-compatible inputs
Pin compatible with the ADG719
APPLICATIONS
Power routing
Battery-powered systems
Communication systems
Data acquisition systems
Cellular phones
Modems
PCMCIA cards
Hard drives
Relay replacement

Show

ADG819BRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	5.50V (max)
Number of Outputs	1 Output
Contacts Type	SPDT
Supply Current	1 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	500 mΩ
Number of Bits	1 Bit
Power Dissipation	0.000005 W
Bandwidth	17 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	17 MHz
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
