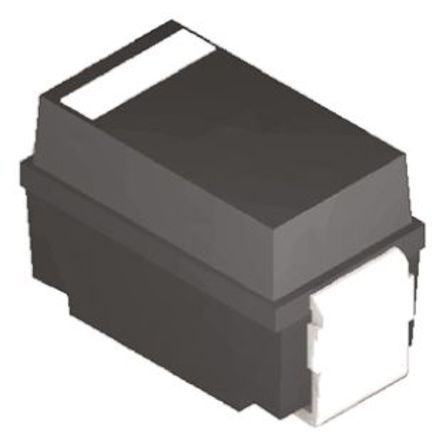

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Schottky Barrier Diodes, 3A to 9A, ON Semiconductor**
The ON Semiconductor range of Schottky diodes can be used in fast switching applications.

Show

NRVBA340T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMA
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	0.45 V
Forward Current	3 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	450 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	Show
Size-Length	4.57 mm
Size-Width	2.92 mm
Size-Height	2.05 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
