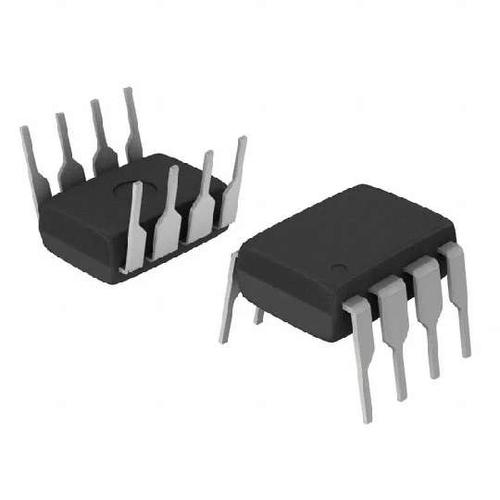

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Do your circuit specifications require switching between low and high currents and voltages? Fairchild Semiconductor"s FSL106HR power switch is your solution. This charge controller has single output. This device has a maximum power dissipation of 1500 mW. It features 11.5 Ohm switch on resistance. This device has a supply current of 2.5 mA and a minimum output current of 0.62 A. Its maximum power dissipation is 1500 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has a minimum operating temperature of -40 °C and a maximum of 105 °C.

Show

FSL106HR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Power Rating	13 W
Number of Outputs	1 Output
Input Voltage (DC)	26.0 V
Output Current	0.62 A
Breakdown Voltage	650 V
Supply Current	2.5 mA
Power Dissipation	1.5 W
Switching Frequency	100 kHz
Duty Cycle	77 %
Output Current (Min)	0.62 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Input Voltage	26 V
	Show
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
