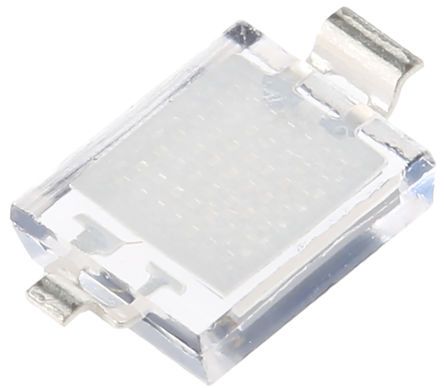

Image is for your reference only,please check specifications for details
- VBPW34S - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC884890
-
Category:Photodiode
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:VBPW34SR Series 60V 940nm 50mA 215mW Surface Mount Silicon PIN Photodiode
-
Stock Locations:
-
Availability:10,898 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.91
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VBPW34S is a surface mount Silicon PIN Photodiode with 7.5mm² sensitive area detecting visible and near infrared radiation. Suitable for visible and near infrared radiation.
VBPW34S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD-2 |
| Rise/Fall Time | 100 ns |
| Breakdown Voltage | 60.0 V |
| Number of Positions | 2 Position |
| Forward Voltage | 1.3 V |
| Wavelength | 940 nm |
| Viewing Angle | 130° |
| Peak Wavelength | 940 nm |
| Power Dissipation | 215 mW |
| Rise Time | 100 ns |
| Reverse Breakdown Voltage | 60 V |
| Maximum Forward Voltage (Max) | 1.3 V |
| Fall Time | 100 ns |
| Fall Time (Max) | 100 ns |
| Fall Time (Max) | 100 ns |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 215 mW |
| Show | |
| Size-Length | 4.4 mm |
| Size-Width | 3.9 mm |
| Size-Height | 1.2 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
