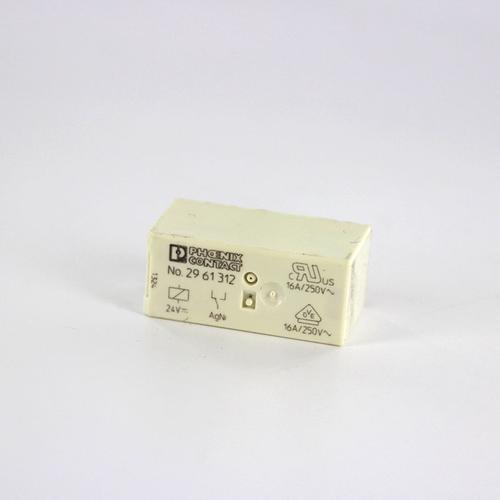

2961312 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC40892985
Category:
Power Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Power/Signal Relay, SPDT, Momentary, 0.017A (Coil), 24VDC (Coil), 408mW (Coil), 16A (Contact), 250VDC (Contact), DC Input, AC-DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The REL-MR series electromechanical miniature Power Relay is recommended for standard applications. It is available in the following versions with one 16A PDT contact, two 8A PDT contacts, in all popular AC and DC coil voltages, in power contact and gold contact versions. Additional suitable standard and special relays (for lamp loads) are available on request.
Suitable for PR1-B

Show

2961312 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	16 A
Contacts Type	SPDT
Power Consumption	1.2 W
Contact Current Rating	16 A
Coil Voltage	24 VDC
Coil Current	17 mA
Coil Resistance	1.44 kΩ
Current Rating (Max)	16 A
Coil Voltage (DC)	24 V
Input Power (Max)	4 KVA
Voltage Rating	250 VAC
	Show
Size-Length	29 mm
Size-Width	12.7 mm
Size-Height	29 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536410060
ECCN Code	EAR99
