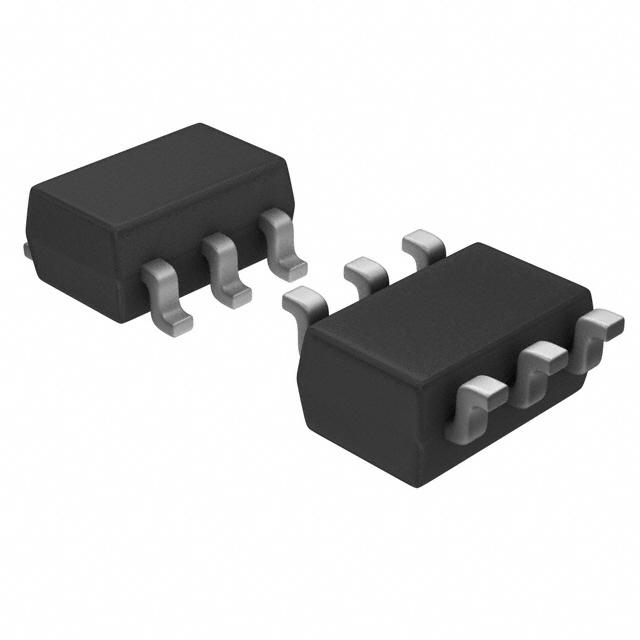

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

REF3220AMDBVREP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Capacitance Tolerance	±0.2 %
Input Voltage (DC)	2.10V ~ 5.50V
Output Voltage	2.048 V
Output Current	10 mA
Supply Current	120 µA
Quiescent Current	100 µA
Input Voltage (Max)	7.5 V
Output Voltage (Min)	2.048 V
Output Current (Max)	10 ma
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	0.2 %
Input Voltage	2.098V ~ 5.5V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±40 ppm/℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
