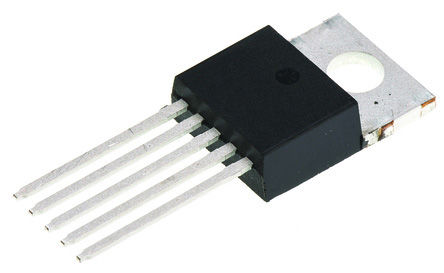

Image is for your reference only,please check specifications for details
- AUIPS6031 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC56767450
-
Category:Power Management IC
-
Package:TO-220-5
-
Datasheet:Datasheet 3D Model
-
Description:Power Switch Hi Side 1Out 8.9A 0.06Ω Automotive 5Pin(5+Tab) TO-220 Tube
-
Stock Locations:
-
Availability:318 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.28
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- Short-circuit protection
- Over-temperature protection
- Digital diagnostic
- Open load detection
- Reverse battery protection
- 12V application
- Active clamp
- Ground loss protection
- Logic ground isolated from power ground
- ESD protection
AUIPS6031 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | TO-220-5 |
| Power Rating | 25 W |
| Number of Outputs | 1 Output |
| Supply Current | 2.2 mA |
| Number of Positions | 5 Position |
| Power Dissipation | 25 W |
| Output Current (Max) | 8.9 A |
| Output Current (Min) | 8.9 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 25000 mW |
| Supply Voltage (Max) | 28 V |
| Supply Voltage (Min) | 6 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 10.67 mm |
| Size-Width | 4.83 mm |
| Size-Height | 16.51 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
