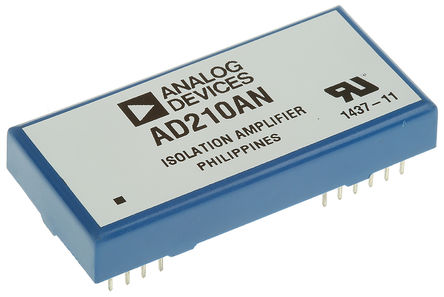

AD210AN - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC268619
Category:
Amplifier, Buffer IC
Package:
PDIP-12
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD210AN Isolation Amplifier, 3Port, 1 Amplifier, 15mV, 15V, 13.5V to 16.5V, DIP, 30Pins
Stock Locations:
Availability:
247 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 162.96

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD210AN is a 3-port Precision Wide Bandwidth Isolation Amplifier manufactured with surface mounted components in an automated assembly process. The AD210 combines design expertise with state-of-the-art manufacturing technology to produce an extremely compact and economical isolator whose performance and abundant user features far exceed those offered in more expensive devices. The AD210 provides a complete isolation function with both signal and power isolation supplied via transformer coupling internal to the module. The AD210"s functionally complete design powered by a single +15V supply eliminates the need for an external DC/DC converter unlike optically coupled isolation devices. The true 3-port design structure permits the AD210 to be applied as an input or output isolator, in single or multichannel applications. The amplifier will maintain its high performance under sustained common-mode stress.
High CMV isolation
Small size
High accuracy
Low nonlinearity
Wide bandwidth
Low gain drift
High CMR
Isolated power
Uncommitted input amplifier
ESD sensitive device, take proper precaution while handling the device.

Show

AD210AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	12 Pin
Case/Package	PDIP-12
Supply Voltage (DC)	5.00 V
Supply Current	50 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	30 Position
Common Mode Rejection Ratio	120 dB
Bandwidth	20 kHz
Slew Rate	1.00 V/μs
Isolation Voltage	15 V
Input Offset Voltage	15 mV
Input Bias Current	30 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	20 kHz
Minimum CMRR Range	120dB ~ 130dB
Supply Voltage	13.5V ~ 16.5V
Supply Voltage (Max)	15V ~ 18V
	Show
Size-Length	53.3 mm
Size-Width	25 mm
Size-Height	8.91 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
