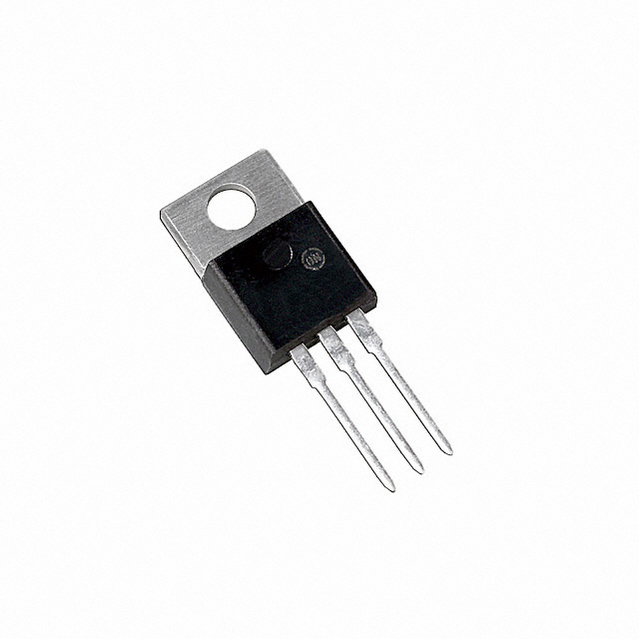

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SWITCHMODETM Power Rectifier
These state−of−the−art devices are designed for use in negative switching power supplies, inverters and as free wheeling diodes. Also, used in conjunction with common cathode dual Ultrafast Rectifiers, makes a single phase full−wave bridge.
Features
•Common Anode Dual Rectifier (8.0 A per Leg or 16 A per Package)
•Ultrafast 35 Nanosecond Reverse Recovery Times
•Exhibits Soft Recovery Characteristics
•High Temperature Glass Passivated Junction
•Low Leakage Specified @ 150°C Case Temperature
•Current Derating @ Both Case and Ambient Temperatures
•Epoxy Meets UL 94 V−0 @ 0.125 in
•Complement to MUR1620CT and MURB1620CT Common Cathode Device
•Pb−Free Packages are Available
Mechanical Characteristics:
•Case: Epoxy, Molded
•Weight: MUR1620CTR: 1.9 Grams (Approximately)
MURB1620CTR: 1.7 Grams (Approximately)
•Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
•Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

Show

MUR1620CTR Specifications
