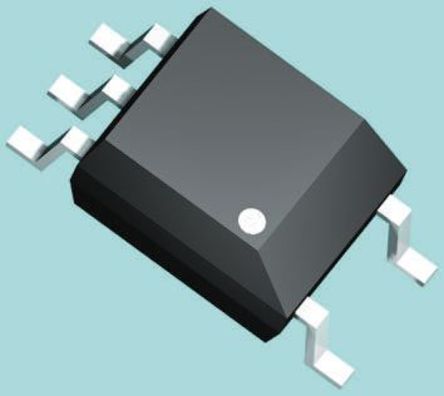

- PC457L0NIP0F - Sharp
-
Manufacturer:Sharp
-
ManyChip's Part#:MC1382534
-
Category:Optocoupler, Optoisolator
-
Package:MFP-5
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler, Transistor Output, 1Channel, SOP, 5Pins, 25mA, 3.75kV, 19%
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PC457L0NIP0F is a 1-channel PC457L0NIP0F series High Speed High CMR OPIC Photocoupler contains a LED optically coupled to an OPIC chip. High speed response (typical 1Mbps) and CMR is minimum 15kV/µs. Transistor of detector side in bipolar configuration may be damaged by static electricity due to its minute design. When handling these devices, general countermeasure against static electricity should be taken to avoid breakdown of devices or degradation of characteristics. In order to stabilize power supply line, we should certainly recommend to connect a by-pass capacitor of 0.01µF or more between VCC and GND near the device. In case that some sudden big noise caused by voltage variation is provided between primary and secondary terminals of photocoupler some current caused by it is floating capacitance may be generated and result in false operation since current may go through LED or current may change.
- 50% LED Degradation over 5 years, in the case of long term operation
- Reflow, flow and hand soldering method
- Solvent cleaning
- Ultrasonic cleaning
- Hand soldering should be completed within 3s when the point of solder iron is below 400°C
PC457L0NIP0F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | MFP-5 |
| Input Voltage (DC) | 1.70 V |
| Output Voltage | 20.0 V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Forward Voltage | 1.7 V |
| Input Current | 25 mA |
| Power Dissipation | 0.1 W |
| Data Rate | 1.00 Mbps |
| Isolation Voltage | 3750 Vrms |
| Forward Current | 25 mA |
| Output Voltage (Max) | 20 V |
| Input Current (Min) | 25 mA |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.95 V |
| Forward Current (Max) | 25 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Height | 2.6 mm |
| Operating Temperature | -55℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
