3005109 Phoenix - Terminal Block, Connector Terminal

Image is for your reference only,please check specifications for details

3005109 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC8186733
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
Соединитель; клеммный блок; предохранитель; 1; 2; 24-6AWG; 20А; 300В; 4кВ; M4; 1.5Нм; патронный; PA
Stock Locations:
Availability:
36 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.6

Updated at 20/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

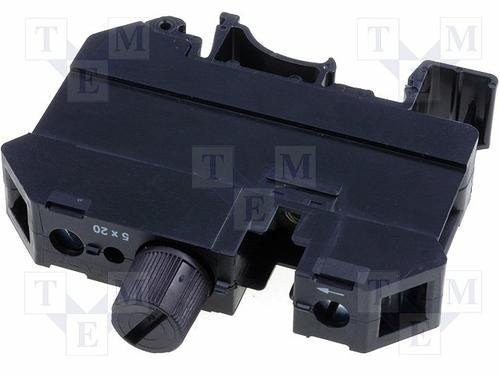

3005109 — это черный плавкий модульный клеммный блок на 2 позиции и 1 уровень для вставки предохранителя 5 x 20 мм типа G. Данный клеммный блок UK 10-DREHSI (5X20) имеет изолятор из полиамида и винтовое соединение M4. Быстрая идентификация неисправных предохранителей независимо от направления тока благодаря светодиодному индикатору состояния. Принимает провода сечением от 24 до 6 AWG.
Может быть соединен перемычкой FBI фиксированной перемычкой
Полусинусоидальная форма удара
Длина зачистки 11 мм
Степень воспламеняемости UL94V-0

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Pin Pitch	12 mm
Number of Contacts	1 Contact
Wire Gauge	6AWG ~ 24AWG
Voltage Rating (AC)	800 V
Current Rating	10 A
Flammability Rating	UL 94 V-2
Number of Positions	2 Position
Voltage Rating	300 V
	Show
Size-Length	62 mm
Size-Width	12 mm
Size-Height	64 mm
Color	Black
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
