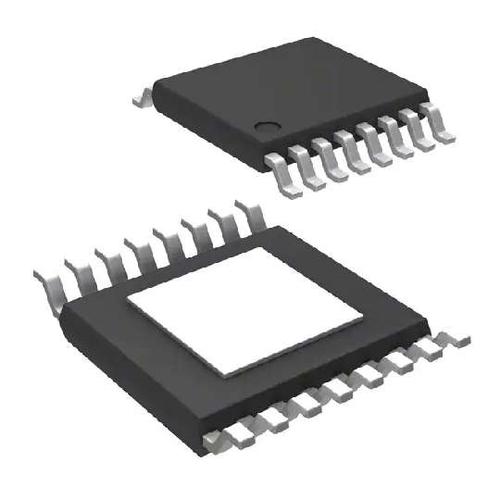

TPS40071PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC72986258
Category:
DC to DC Converter
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS40071PWP DC-DC Controller, Voltage Mode, 4.5V to 28V, 1 Output, Synchronous Buck, 1MHz, TSSOP-16
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Texas Instruments" synchronous buck TPS40071PWP DC voltage controller will provide the proper DC voltage level for each component within your electronic project. This DC voltage controller has single output. This DC voltage controller has an input voltage of 4.5 to 28 V. You can operate this at a switching frequency of 1000 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.

Show

TPS40071PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Current	20 A
Switching Frequency	1 MHz
Duty Cycle	93 %
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Maximum Duty Cycle	0.93
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 28V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 28V
	Show
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
