MK27FN2M0VMI15 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC107603626
Package:

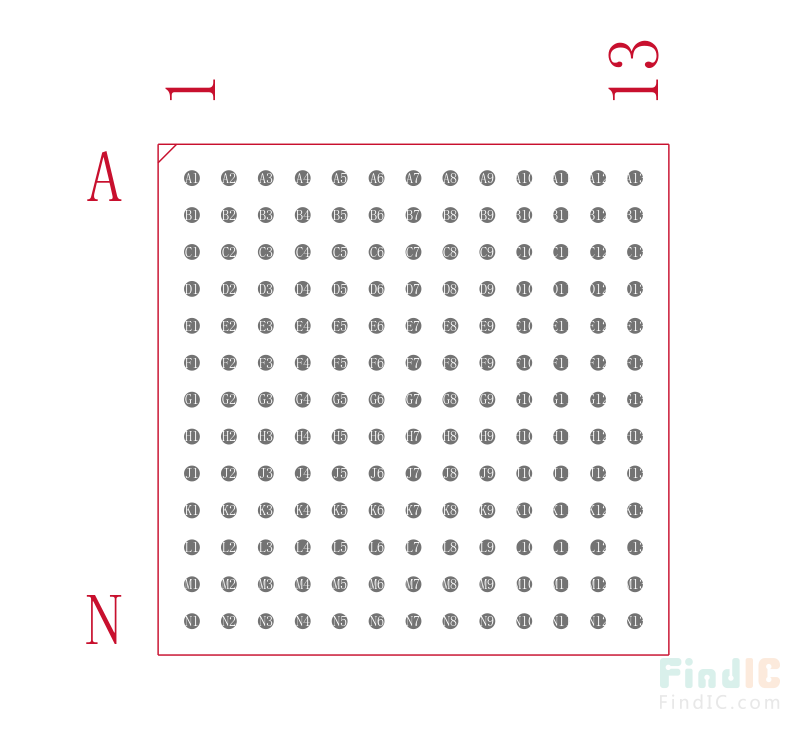

MAPBGA-169
Datasheet:
Datasheet 3D Model
Description:
Kinetis K27: 150MHz Cortex-M4 Performance MCU, 2Mb Flash, 1Mb RAM, 2x USB (FS + HS), 169 MAPBGA
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The Kinetis K27 USB ARM Cortex-M4 MCUs target applications requiring processing efficiency and extra-large embedded memory with 2 MB Flash and 1 MB SRAM. This sub-family is:
* Highly integrated with two I2S interfaces, two USB Controllers (High-Speed with integrated High-Speed PHY and Full-Speed) and mainstream analog peripherals
* Expandable through a 32-bit SDRAM memory controller and QuadSPI interface supporting eXecution-In-Place (XiP).
* Enabling secure content using a True Random Number Generator, Cyclic Redundancy Check, Memory Mapped Cryptographic Acceleration Unit
Input supply voltage: 1.71V to 3.6V + separate VBAT domain
Packages: 169 MAPBGA (9x9mm, 0.65mm pitch)
Evaluation / Development platform: FRDM-K28F
MoreLess
## Features
### Performance
* 150 MHz (max) ARM Cortex-M4 with DSP instructions and Single Precision Floating Point unit (FPU)
* 32-channel DMA with asynchronous support in Stop mode
* Cross bar switch enables concurrent multi-master bus accesses, increasing bus bandwidth
### Ultra-Low-Power
* Active run power consumption @120MHz: <302 µA/MHz (TYP)(@25C) running from internal flash
* Static power consumption down to <11 µA with full 1 MB SRAM retention and <6 µS wakeup
* Lowest static mode down to 254 nA (VLLS0)
### Memory
* 2 MB dual bank embedded program flash
* 1 MB of SRAM
* 8 KB I/D Cache + 8 KB System Cache
* 32-bit SDRAM controller
* QuadSPI interface with eXecution-In-Place (XiP)
### Mixed-Signal Capability
* 16-bit SAR ADC: Up to 18ch Single-Ended / 3ch Differential
* 12-bit DAC
* Two analog comparators (CMP) containing a 6-bit DAC and programmable reference input
* 1.2V Analog voltage reference
### Timing and Control
* One 4-ch Periodic interrupt timer
* Two 16-bit low-power timer PWM modules
* Two 8-ch motor control/general purpose/PWM timers
* Two 2-ch quadrature decoder/general purpose timers
* Real-time clock with independent 3.6 V power domain
* Programmable delay block
### Human-Machine Interface (HMI)
* 32-ch Programmable module (FlexIO) to emulate various serial, parallel or custom interfaces
### Connectivity and Communications
* Dual USB Controllers: High-Speed (HS) w/ integrated HS PHY + crystal-less Full-Speed (FS) operations
* Five Low Power UART (LPUART) modules
* Two I2S modules for audio system interfacing and four I2C modules
* Four SPI modules (One supports up to 40 Mbps)
* Secure Digital Host Controller (SDHC)
### Reliability, Safety and Security
* Cyclic redundancy check (CRC) engine validates memory contents and communication data, increasing system reliability
* True random number generator (TRNG)
* Memory Mapped Crypto Acceleration Unit (MMCAU): DES, 3DES, AES, MD5, SHA-1 and SHA-256Comparison Table
Kinetis MCU sub-family | Flash | SRAM | PMC w/ Core Voltage Bypass | Packages | Development board
\---|---|---|---|---|---
K27 | 2 MB | 1 MB | No | 169 MABPGA | FRDM-K28F
K28 | 2 MB | 1 MB | Yes | 210 WLCSP
169 MAPBGA | FRDM-K28F

Show

MK27FN2M0VMI15 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	169 Pin
Case/Package	MAPBGA-169
RAM Memory Size	1 MB
Number of ADCs	1 ADC
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	3 DAC
	Show
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
