Description

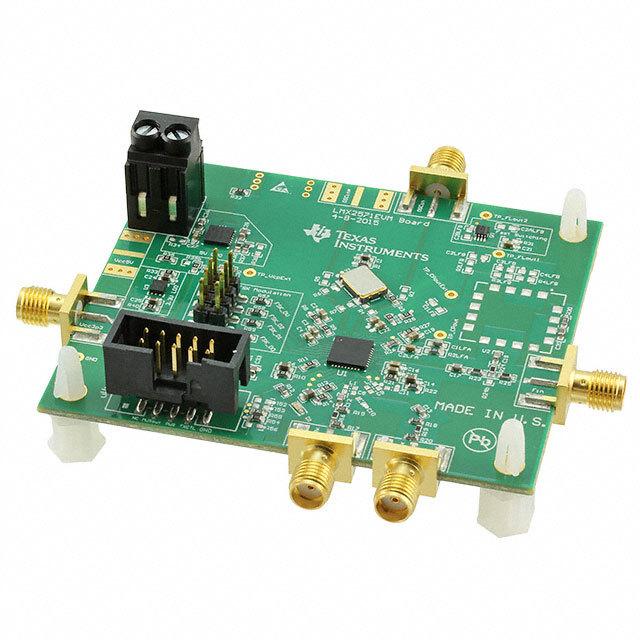

The LMX2571EVM is an evaluation board for the LMX2571 low-power, high performance PLLatinum RF synthesizer with FSK modulation. The LMX2571 is a frequency synthesizer with low noise, high performance integrated VCO. The VCO core is a low noise 5GHz VCO, after the output channel divider, the divided down frequencies are 10MHz to 1400MHz. The internal VCO is bypassable allowing the use of external VCO. A separated 5V charge pump is dedicated for external VCO, eliminating the need for an op-amp to support 5V VCO. Output of the external VCO can also route through another output channel divider. The LMX2571EVM can be programmed via SPI programming, I2S programming and PIN mode. PIN mode supports up to 8-level FSK modulation. The board can be powered with a 5V external supply.
External VCO option
Direct digital FSK modulation
One TX/RX output or two fan-out outputs
Crystal, XO or differential reference clock input

Show

LMX2571EVM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Frequency	10MHz ~ 1.4GHz
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
