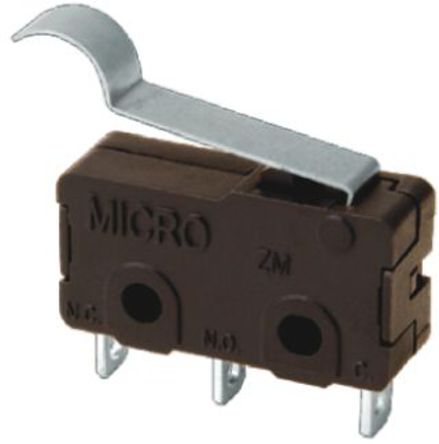

Image is for your reference only,please check specifications for details
- ZM50E10E01 - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC12420611
-
Category:Switch
-
Package:125
-
Datasheet:Datasheet 3D Model
-
Description:MICRO SWITCH™ Субминиатюрные базовые переключатели: серия ZM, увеличенный механический ресурс, однополюсный на два направления (SPDT), 0.1A 125/250VAC, золотые контакты, длинный прямой рычаг 24,8мм [0.98in], максимальное усилие срабатывания 104г [3.67 oz], выводы для печатной платы с золотыми НО и НЗ контактами, UL, cUL, CE, CQC
-
Stock Locations:
-
Availability:2 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.27
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия ZM MICRO SWITCH™ субминиатюрный базовый выключатель, используемый для простых или точных задач включения/выключения. Этот выключатель сочетает малые размеры и легкий вес с достаточной электрической емкостью, низкой стоимостью и длительным сроком службы. Он также применяется в бытовой технике, таймерах, устройствах ручного управления, офисном оборудовании, клапанах, торговых автоматах и бизнес-оборудовании.
- Корпус из полиамида
- Субминиатюрный: 10,6 мм (В) x 6,4 мм (Ш) x 19,8 мм (Д)
- Выбор электрических характеристик для низкоэнергетических или силовых нагрузок (контакты с золотым или серебряным покрытием)
- Опции схемы: однополюсный на два направления (SPDT) или однополюсный на одно направление (SPST)
- Выбор номиналов: 0,1 А, 5 А, 10,1 А или 16 А
- Выбор привода, способа подключения и рабочих характеристик
ZM50E10E01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis, Solder Lug |
| Case/Package | 125 |
| Actuator Type | Roller Lever |
| Voltage Rating (AC) | 125 V |
| Current Rating | 5A (AC) |
| Contacts Type | SPDT |
| Contact Current Rating | 5 A |
| Current Rating (Max) | 5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 19.8 mm |
| Size-Height | 10.6 mm |
| Contact Material | Silver Alloy |
| Operating Temperature | -40℃ ~ 120℃ |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536509055 |
| ECCN Code | EAR99 |
