Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 8 Pin |

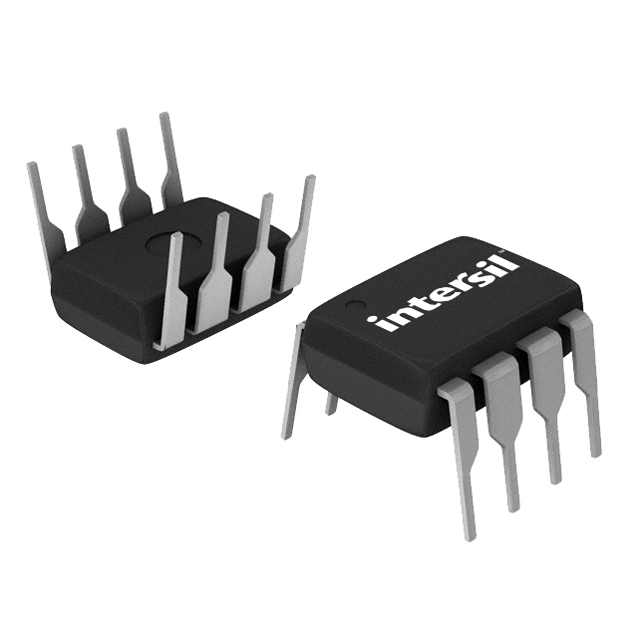

Case/Package | DIP-8 |
Supply Current | 4 mA |
Number of Circuits | 1 Circuit |
Bandwidth | 4.5 MHz |
Slew Rate | 9.00 V/μs |
Gain Bandwidth Product | 4.5 MHz |
Input Offset Voltage | 5 mV |
Input Bias Current | 10 pA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -55 ℃ |
Gain Bandwidth | 4.5 MHz |
Supply Voltage | 4V ~ 36V |
Supply Voltage (Max) | 36 V |
Show | |
Operating Temperature | -55℃ ~ 125℃ |
Product Lifecycle Status | Unknown |
Packaging | Each |
RoHS | Non-Compliant |
Lead-Free Status | Contains Lead |
REACH SVHC Compliance Edition | 2014/06/16 |
