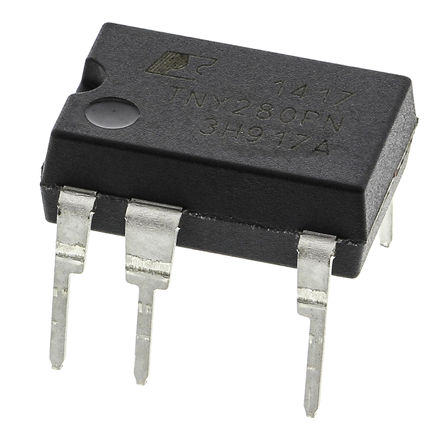

- TNY280PN - Power Integrations
-
Manufacturer:Power Integrations
-
ManyChip's Part#:MC1612333
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:AC-DC Converter, Offline Switchers, Energy Efficient, 28.5W (85-265VAC) 36.5W (230VAC), 7Pin, DIP8
-
Stock Locations:
-
Availability:765 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.81
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TinySwitch-III incorporates a 700 V power MOSFET, oscillator, high-voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.
- Simple ON/OFF control, no loop compensation needed
- Selectable current limit through BP/M capacitor value
- Tight I2f parameter tolerance reduces system cost
- ON-time extension - extends low line regulation range/hold-up time to reduce input bulk capacitance
- Frequency jittering reduces EMI filter costs
TNY280PN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 7 Pin |
| Case/Package | DIP-8 |
| Frequency | 132 kHz |
| Supply Voltage (DC) | 265V (max) |
| Power Rating | 36.5 W |
| Number of Outputs | 1 Output |
| Output Voltage | 700 V |
| Output Current | 1.36 A |
| Breakdown Voltage | 700 V |
| Supply Current | 630 µA |
| Number of Positions | 7 Position |
| Output Power | 20 W |
| Switching Frequency | 132 kHz |
| Duty Cycle | 65 % |
| Input Voltage (AC Max) | 265 v |
| Input Voltage (AC Min) | 85 v |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 85.265 V |
| Show | |
| Size-Length | 9.83 mm |
| Size-Width | 6.6 mm |
| Size-Height | 3.68 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
