Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

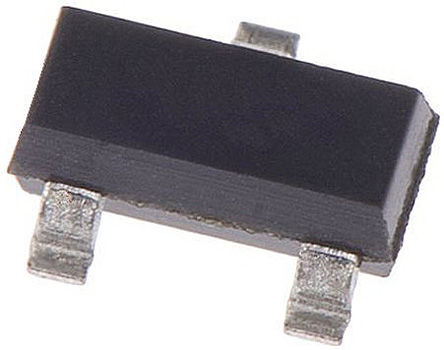

Case/Package | SOT-23-3 |
Capacitance Tolerance | ±2 % |
Input Voltage (DC) | 1.80V ~ 5.50V |
Output Voltage | 1.25 V |
Output Current | 25 mA |
Supply Current | 59 µA |
Number of Channels | 1 Channel |
Number of Positions | 3 Position |
Quiescent Current | 42.0 µA |
Input Voltage (Max) | 7 V |
Output Voltage (Max) | 1.275 V |
Output Voltage (Min) | 1.25 V |
Output Current (Max) | 25 mA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Accuracy | ±2 % |
Input Voltage | 1.8V ~ 5.5V |
Show | |
Size-Length | 2.92 mm |
Size-Width | 1.3 mm |
Size-Height | 1 mm |
Operating Temperature | -40℃ ~ 125℃ (TA) |
Temperature Coefficient | ±35 ppm/℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | EAR99 |
