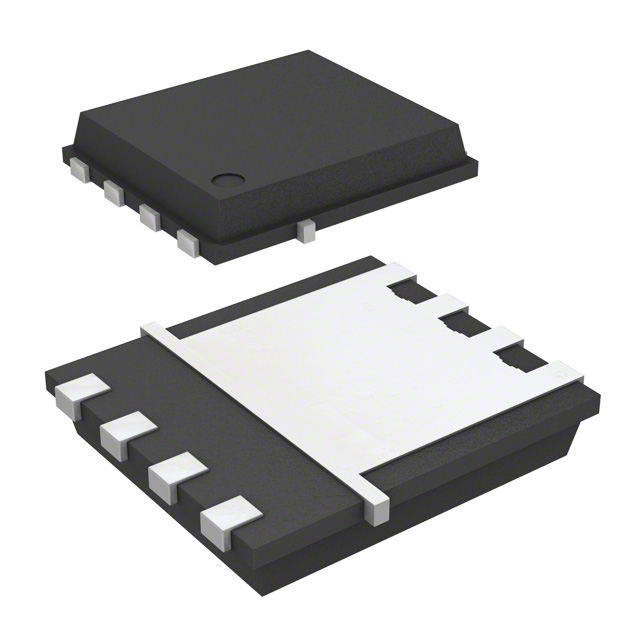

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 100V 14.5A (Ta), 60A (Tc) 3.2W (Ta), 125W (Tc) Surface Mount Dual Cool™56

Show

FDMS86101DC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	8 Pin
Case/Package	PowerTDFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.006 Ω
Power Dissipation	3.2 W
Threshold Voltage	2.7 V
Input Capacitance	3135 pF
Drain to Source Voltage (Vds)	100 V
Rise Time	8.2 ns
Input Capacitance (Ciss)	2354pF @50V(Vds)
Input Power (Max)	3.2 W
Fall Time	5.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3200 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
