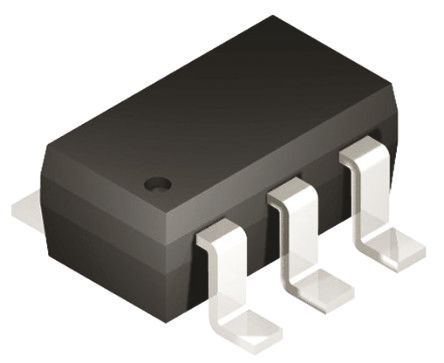

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD4E1U06DBVR is a low-capacitance 4-channel ESD Protection Device for high-speed data interfaces. It is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (level 4). The device has a 1.5pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra-low leakage current (<1nA maximum) is suitable for precision analogue measurements in applications like glucose meters and heart rate monitors. It offers higher IEC protection, lower capacitance, lower clamping voltage and eliminate the input capacitor requirement.
IEC 61000-4-2 ESD Protection (level 4) ±8kV contact discharge and ±15kV air-gap discharge
5.5A Peak pulse current (8/20µs pulse)
1.5pF IO capacitance
1nA Maximum low leakage current
1nA Low supply current
0.9 to 5.5V Supply-voltage range
-40 to 85°C Operating temperature range

Show

TPD4E1U06DBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Operating Voltage	5.5 V
Capacitance	1 pF
Breakdown Voltage	7 V
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	6 Position
Power Dissipation	45 W
Clamping Voltage	15 V
Test Current	1 mA
Peak Pulse Power	45 W
Min Breakdown Voltage	6.5 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
