The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the Company’s PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high
dv/dt and excellent avalanche characteristics. The adoption of the Company’s proprietary strip technique yields overall dynamic performance that is significantly better than that of similar competitor’s products.
General features
■ High dv/dt and avalanche capabilities
■ 100% avalanche tested
■ Low input capacitance and gate charge
■ Low gate input resistance
■ Tight process control and high manufacturing yields
Applications
■ Switching application

Show

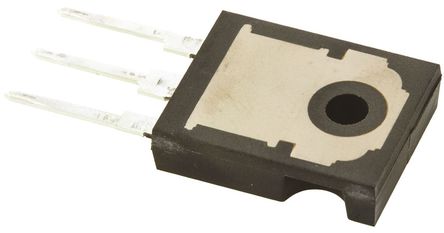

STW45NM60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	45.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	110 mΩ
Polarity	N-Channel
Power Dissipation	417 W
Drain to Source Voltage (Vds)	650 V
Breakdown Voltage (Drain to Source)	600 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	45.0 A
Rise Time	20 ns
Input Capacitance (Ciss)	3800pF @25V(Vds)
Input Power (Max)	417 W
Fall Time	23 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	417W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
