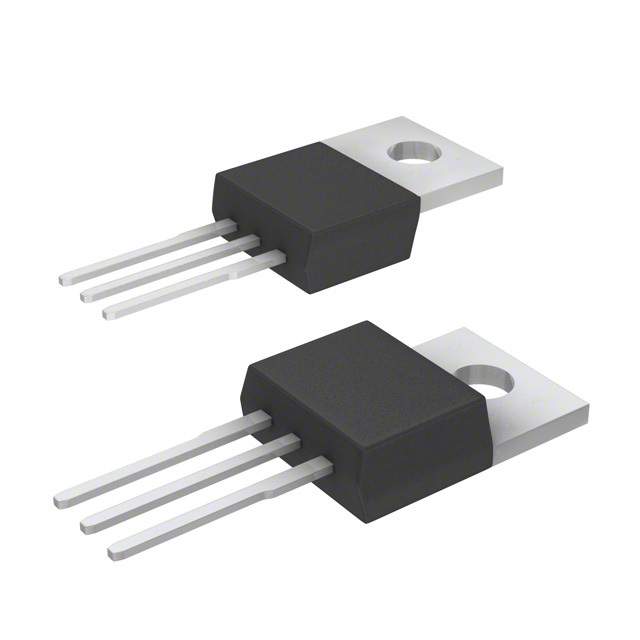

Image is for your reference only,please check specifications for details
- MBR2045CT - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC69853661
-
Category:Schottky Diode
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:Diode Schottky 45V 20A 3Pin(3+Tab) TO-220AB Tube
-
Stock Locations:
-
Availability:10,530 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.61
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SCHOTTKY BARRIER RECTIFIER 20 AMPERES, 45 VOLTS
- Features and Benefits
- • Low Forward Voltage
- • Low Power Loss / High Efficiency
- • High Surge Capacity
- • 175°C Operating Junction Temperature
- • 20 A Total (10 A Per Diode Leg)
- • Pb−Free Package is Available
- Applications
- • Power Supply − Output Rectification
- • Power Management
- • Instrumentation
MBR2045CT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 45.0 V |
| Current Rating | 20.0 A |
| Capacitance | 500 pF |
| Forward Voltage | 570mV @10A |
| Forward Current (Max) | 20 A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
