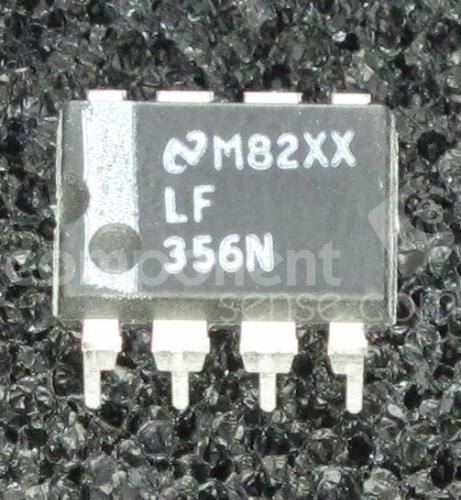

Image is for your reference only,please check specifications for details
- LF356N - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1115757
-
Category:Operational Amplifier, OP Amp IC
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 5MHz, 12V/µs, 10V to 36V, DIP, 8Pins
-
Stock Locations:
-
Availability:266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.74
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- These are the first monolithic JFET input operational amplifiers to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.
- Replace expensive hybrid and module FET op amps
- Rugged JFETs allow blow-out free handling compared with MOSFET input devices
- Excellent for low noise applications using either high or low source impedance
- Offset adjust does not degrade drift or common-mode rejection as in most monolithic amplifiers
- New output stage allows use of large capacitive loads without stability problems
- Internal compensation and large differential input voltage capability
LF356N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 15.0 V |
| Output Current | 25.0 mA |
| Supply Current | 5 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 80 dB |
| Input Offset Drift | 5.00 µV/K |
| Bandwidth | 5 MHz |
| Slew Rate | 12.0 V/μs |
| Gain Bandwidth Product | 5 MHz |
| Input Offset Voltage | 3 mV |
| Input Bias Current | 30 pA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 5 MHz |
| Supply Voltage | 10V ~ 36V |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Width | 6.35 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
