Description

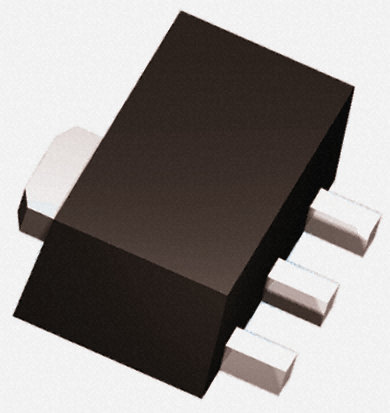

The PBSS5540X is a 5A PNP breakthrough-in small signal (BISS) Transistor housed in a surface-mount plastic package. It offers collector pad for good heat transfer.
Low collector-emitter saturation voltage VCEsat
High collector current capabilities are IC and ICM
High efficiency leading to less heat generation
1G Marking code

Show

PBSS5540X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	550 mW
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	4A
hFE Min	50
DC Current Gain (hFE)	250
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	2.5 W
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
