Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 4 Pin |

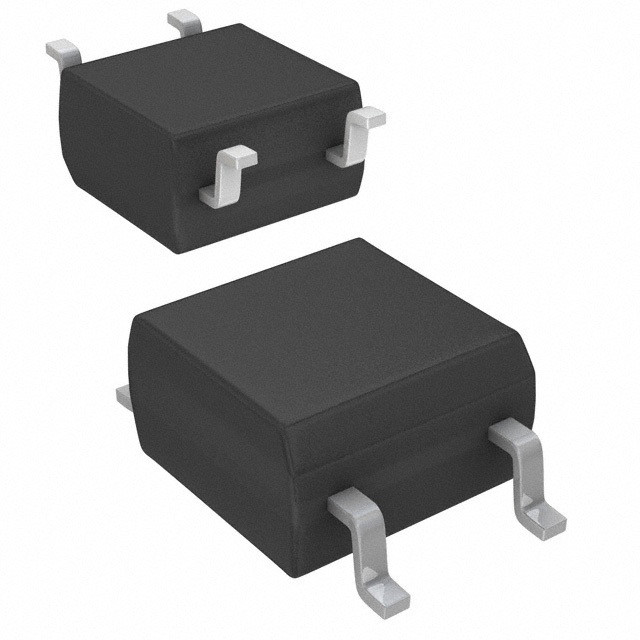

Case/Package | SOP-4 |
Capacitance | 1.45 pF |
Output Voltage | 350 V |
Output Current | 100 mA |
Contacts Type | SPST-NO |
Load Current | 100 mA |
Input Current | 50 mA |
Power Dissipation | 400 mW |
Isolation Voltage | 1500 v |
Input Voltage (Max) | 1.4 V |
Input Voltage (Min) | 0.9 V |
Output Voltage (Max) | 350 V |
Output Current (Max) | 0.1 A |
Input Current (Min) | 50 mA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Input Voltage | 1.2 VDC |
Show | |
Size-Length | 4.089 mm |
Size-Width | 3.8 mm |
Size-Height | 2.184 mm |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
