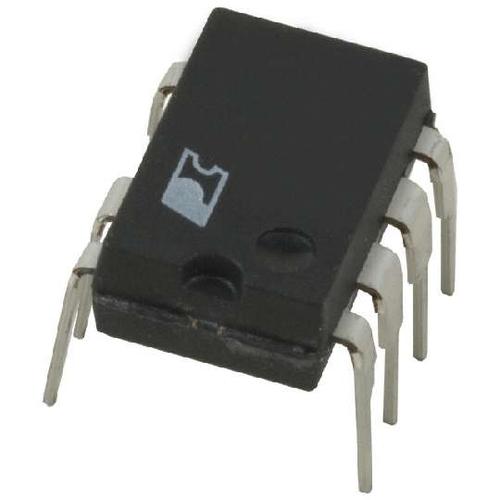

Image is for your reference only,please check specifications for details
- TNY264PN - Power Integrations
-
Manufacturer:Power Integrations
-
ManyChip's Part#:MC1293708
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Analog switch; DIP8; 700V; 28Ω; 400mA
-
Stock Locations:
-
Availability:653 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.84
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TNY264PN is a TinySwitch-II, EcoSmart, enhanced energy efficient low power off line switcher in 8 pin DIP package. This device integrates 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start up and operating power are derived directly from voltage on DRAIN pin by eliminating need for bias winding and associated circuitry. In addition, the TinySwitch-II device incorporates auto restart, line undervoltage sense and frequency jittering. An innovative design minimizes audio frequency components in simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction. The fully integrated auto restart circuit safely limits output power during fault conditions such as output short circuit or open loop, reducing component count and secondary feedback circuitry cost. The TNY264PN meets CEC, Energy Star and EU requirements.
- Output power of 9W at 230VAC and 6W at 85VAC to 265VAC in open frame design
- Output power of 5.5W at 230VAC and 4W at 85VAC to 265VAC in non ventilated enclosed adapter
- Maximum duty cycle of 65%
- Built-in circuitry practically eliminates audible noise with ordinary dip varnished transformer
- 132KHz operation reduces transformer size, uses EF12.6 or EE13 cores for low cost and small size
- Very tight tolerances and negligible temperature variation eases design and low cost
- Cost effective replacement for bulky regulated liners
- Simple design practically eliminates rework in manufacturing
- Built-in current limit and thermal protection improves safety
- Operating junction temperature from -40°C to 150°C
TNY264PN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 7 Pin |
| Case/Package | DIP-8 |
| Frequency | 132 kHz |
| Supply Voltage (DC) | 265 V |
| Power Rating | 9 W |
| Number of Outputs | 1 Output |
| Output Voltage | 700 V |
| Output Current | 400 mA |
| Breakdown Voltage | 700 V |
| Supply Current | 225 µA |
| Number of Positions | 7 Position |
| Drain to Source Resistance (on) (Rds) | 28 Ω |
| Number of Regulated Outputs | 1 Output |
| Output Power | 6 W |
| Switching Frequency | 132 kHz |
| Duty Cycle | 65 % |
| Output Voltage (Max) | 700 V |
| Maximum Duty Cycle | 68 % |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 265 VAC |
| Supply Voltage (Min) | 50 V |
| Input Voltage | 85.265 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
